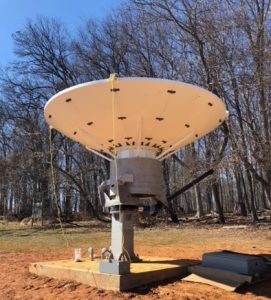

4.2-Mtr Ka-Band Turning Head Antenna

A 4.2-mtr Carbon Fiber Gregorian turning head antenna that supports X-band, X-band Lo-PIM, Ku-band and Ka-band operations with a switchable feed.  The specially designed large hub is designed to house a full complement of RF components.  The azimuth coverage is via a +/_ 170 ° slew gear and the elevation is 5° to 90° via a self-locking, anti-back lash, mechanical screw jack.  Let us design one for you.

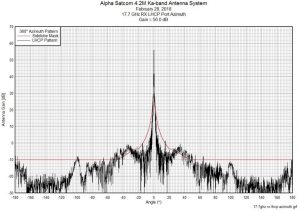

February 28, 2018
17.7 GHz RX LHCP Port Azimuth
Gain = 56.0 dB

Hughes Antenna 4.2-mtr.
